ORDERING INFORMATION
| 1 | INPUT | B: Pt-30Rh/Pt6Rh
R: Pt-13Rh/Pt S: Pt-10Rh/Pt N: Ni-Cr/Ni-Si K: Ni-Cr/Ni-Al J: Fe/Cu-Ni T: Cu/Cu-Ni E: Ni-Cu/Cu-Ni PT100 PT1000 |
| 2 | OUTPUT TYPE | S: SINGLE
D: DOUBLE T: TRIPLE |
| 3 | CLASS | THERMOCOUPLE
1 2 3 RTD A B |
| 4 | TUBE MATERIAL | SUS304
SUS316 |

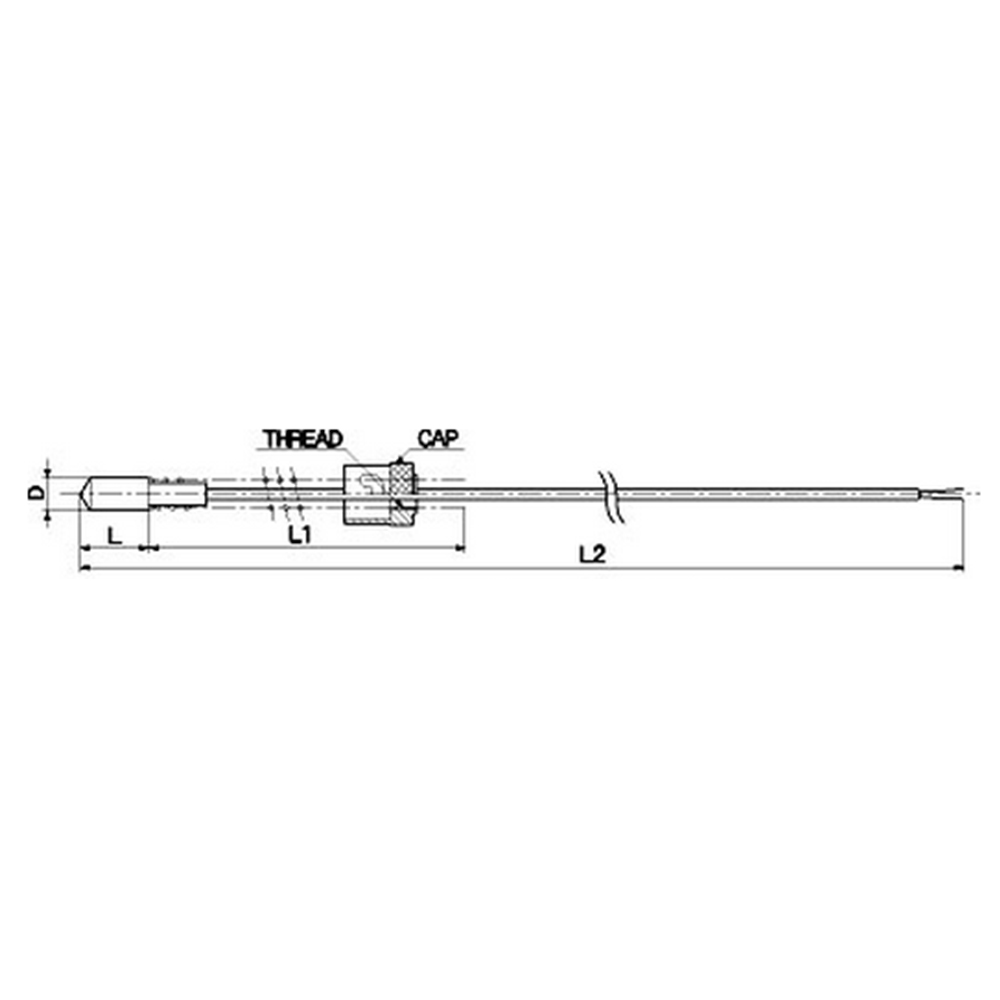

| 5 | OUT DIAMETER (D) | Unit inches (“) or millimeters (mm) |
| 6 | LENGTH (L) | Unit inches (“) or millimeters (mm) |
| 7 | SPRING LENGTH (L1) | Unit inches (“) or millimeters (mm) |
| 8 | LEAD LENGTH (L2) | Unit inches (“) or millimeters (mm) |
| 9 | LEAD INSULATION *1 | L1
L2 L3 L4 L5 L6 L7 L8 |
| 10 | TERMINATION TYPE *2 | T1
T2 T3 T4 T5 T6 T7 |
| 11 | SPRING TYPE | 4.5: 4.5mm outer diameter
6: 6mm outer diameter 8: 8mm outer diameter |
| 12 | CAP TYPE *3 | 1 SLOT
BC1/4.5/11.4 BC1/6/11.4
2 SLOTS BC2/4.5/11.4 BC2/4.5/12 BC2/6/12 BC2/8/12 BC2/6/14 BC2/8/14 BC2/6/15 BC2/8/15 |
| 13 | TIP SHAPE | THERMOCOUPLES
E: EXPOSED G: GROUNDED U: UNGROUNDED RTD BLANK |
*1: LEAD INSULATION
| TYPE | DESCRIPTION | PICTURE |
| L1 | PVC LEADS / PVC OUTER MAX 100°C |  |
| L2 | TEFLON TWISTED MAX 260°C |  |
| L3 | TEFLON LEADS / TEFLON OUTER MAX 260°C |  |
| L4 | GLASS BRAIDED MAX 400°C |  |
| L5 | GLASS BRAIDED / TIN COPPER BRAID OUTER MAX 400°C |  |
| L6 | GLASS BRAIDED / St/St BRAID OUTER MAX 400°C |  |
| L7 | GLASS BRAIDED / GALV HELICOIL OUTER MAX 400°C |  |
| L8 | GLASS BRAIDED / St/STEEL HELICOIL OUTER MAX 400°C |  |
*2: TERMINATION TYPE
| TYPE | DESCRIPTION | PICTURE |
| T1 | 75mm TAILS |  |
| T2 | T/C SPADE TERMINALS |  |
| T3 | MINIATURE T/C PLUG |  |
| T4 | MINIATURE T/C SOCKET |  |
| T5 | STANDARD T/C PLUG |  |
| T6 | STANDARD T/C SOCKET |  |
| T7 | T/C CONNECTOR BLOCK |  |
*3: CAP TYPE
1 SLOT
| CODE | SUIT SPRING | A (mm) | B (mm) | C (mm) | D (mm) |
| BC1/4.5/11.4 | 4.5 | 13 | 11.4 | 12 | 6 |
| BC1/6/11.4 | 6 | 13 | 11.4 | 12 | 6 |
2 SLOTS
| CODE | SUIT SPRING | A (mm) | B (mm) | C (mm) | D (mm) |
| BC2/4.5/11.4 | 4.5 | 13 | 11.4 | 12 | 6 |
| BC2/4.5/12 | 4.5 | 14 | 12.2 | 12 | 6 |
| BC2/6/12 | 6 | 14 | 12.2 | 12 | 6 |
| BC2/8/12 | 8 | 14 | 12.2 | 12 | 6 |
| BC2/6/14 | 6 | 15.5 | 14.2 | 12 | 6 |
| BC2/8/14 | 8 | 15.5 | 14.2 | 12 | 6 |
| BC2/6/15 | 6 | 16.5 | 15.2 | 12 | 6 |
| BC2/8/15 | 8 | 16.5 | 15.2 | 12 | 6 |
Modelos disponibles:
| DS4300-J-S-2-SUS304-5mm-13mm-175mm-2000mm-L6-T2-4.5- BC2/4.5/12-U | TC-J BAYONETA SUS304 5(ø)x13(L)mm CABLE 2m |
| DS4300-K-S-2-SUS304-5mm-13mm-175mm-2000mm-L6-T2-4.5- BC2/4.5/12-U | TC-K BAYONETA SUS304 5(ø)x13(L) mm CABLE 2m |
| Modelos disponibles: | DS4300-J-S-2-SUS304-5mm-13mm-175mm-2000mm-L6-T2-4.5- BC2/4.5/12-U, DS4300-K-S-2-SUS304-5mm-13mm-175mm-2000mm-L6-T2-4.5- BC2/4.5/12-U |
|---|
